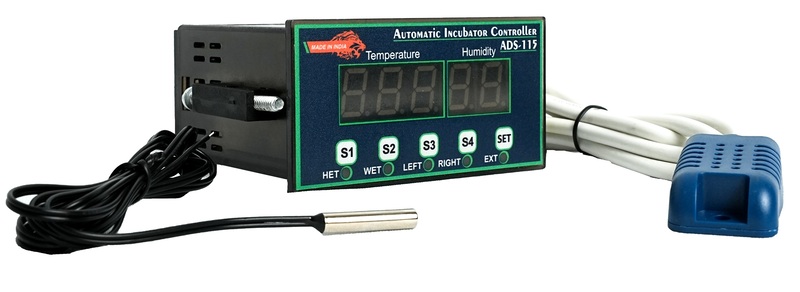

The ADS-115 Automatic Incubator Controller by AdSpark Systems is a high-performance, fully automated solution designed to deliver precise environmental control for optimal incubation results.
Engineered with advanced sensing technology, it ensures accurate temperature (±0.1°C) and stable humidity control, which are critical for maximizing hatch rates. The controller comes equipped with 5 dedicated relay outputs to independently manage heater, humidifier, egg turning motor (left/right), and air circulation system.
With fully adjustable parameters, users can customize turning cycles, duration, air refresh timing, and environmental settings based on specific incubation requirements. The intuitive interface with 5 control keys and LED indicators makes operation simple, even for first-time users.
Built to handle real-world farm conditions, the ADS-115 supports high load capacity (up to 15A) and ensures long-term durability and consistent performance.
Whether you are running a commercial hatchery or building a custom incubator, this controller provides a complete, reliable, and automated incubation solution.
Electrical & Input:
- Input Voltage: 12V DC / 2A
Temperature Control:
- Display Range: 0 to 40.5°C
- Accuracy: ±0.1°C
Humidity Control:
- Range: 0 to 99% RH
- Control Accuracy: ±3% RH
Control Functions:
- Maximum Turns: Up to 999 cycles
- Turn Interval: 0–999 minutes (Default: 90 min)
- Turn Duration: 0–999 seconds (Default: 180 sec)
- Air Refresh Interval: 0–999 minutes (Default: 120 min)
- Air Refresh Duration: 0–999 seconds (Default: 15 sec)
Outputs:
- 5 Relay Outputs: Heater, Humidity, Turn Left, Turn Right, Air Refresh
Load Capacity:
- 15A (Heater & Humidity)
- 5A (Other Outputs) @ 230V AC
Interface:
- 5 Control Keys
- 5 LED Indicators
Physical:
- Sensor Length: ~1 meter
- Dimensions: 95 × 86 × 50 mm
